Even small customization can solve challenges and increase the value of the Meridian solution. Here is a relevant customizations that can be quickly adopted to bring performance and usability to your Meridian.

The challenge

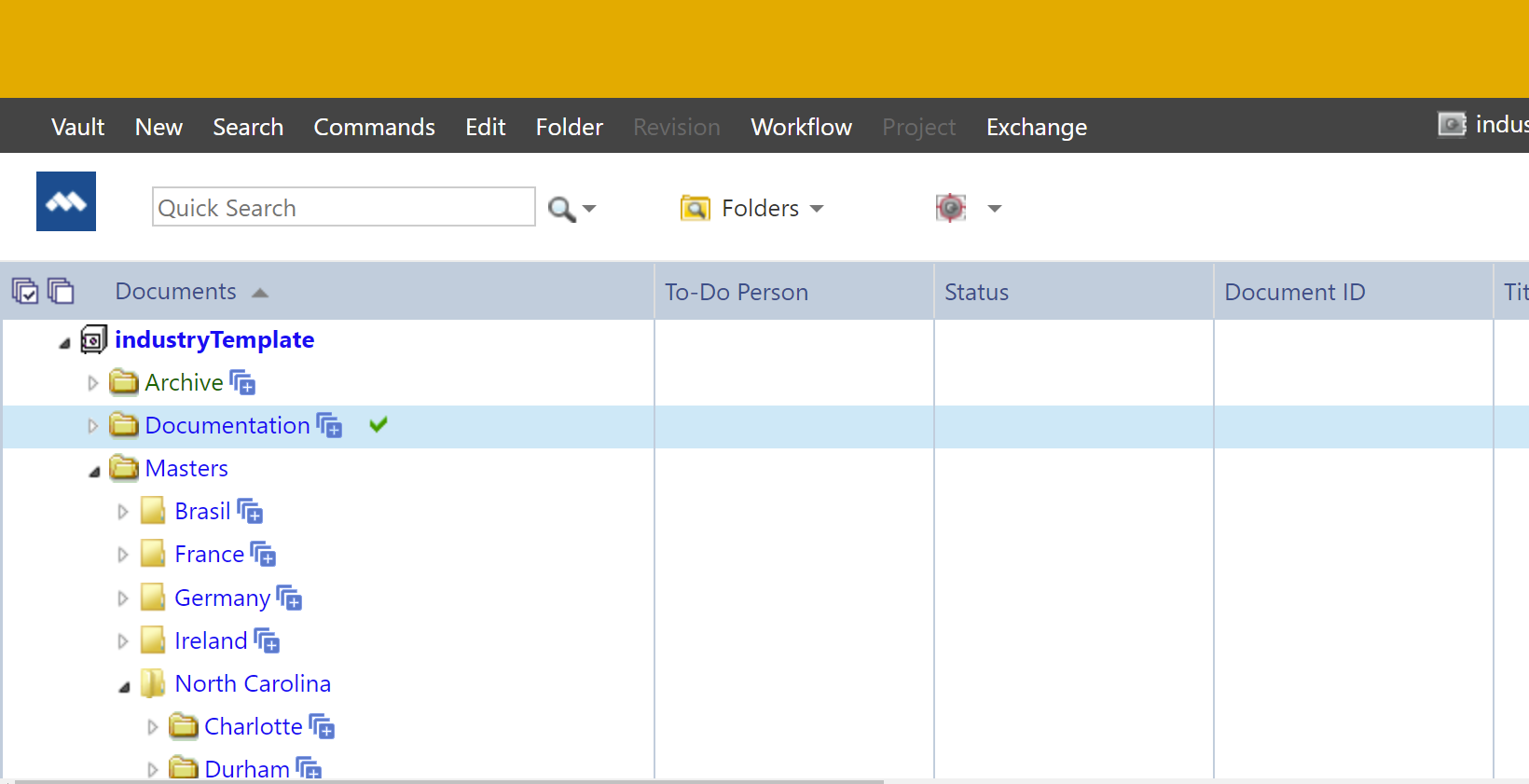

To quickly open a folder structure or a navigation view to the document level.

The solution

See the video:

How to install the solution

All files are available on Github.

Step by step procedure:

1. Locate the file \inetpub\amm\scr\ main.js
2. Create a backup of the file in case you need to restore it.
3. Open the file in a text editor, like notepad or notepad++

4. Add the lines below after the last line

   function dynamicallyLoadScript(url) {
    var script = document.createElement("script");  // create a script DOM node
    script.src = url;  // set its src to the provided URL

    document.head.appendChild(script);  // add it to the end of the head section of the page (could change 'head' to 'body' to add it to the end of the body section instead)
   }
   //do not load for IE
   if (!window.document.documentMode) {
   dynamicallyLoadScript("/Meridian/Src/ExpandAll.js");
   }


5. Locate the file \inetpub\amm\scr\ amm.css

6. Create a backup of the file in case you need to restore it.

7. Open the file in a text editor, like notepad or notepad++

8. Add the lines below :

   .expand img {
    margin-left: 2px!important;
    opacity: 0.2;
   }
   .expand:hover img {
   opacity: 1;
   }


9. Copy the file ExpandAll.js to the folder \inetpub\amm\scr

10. Copy the file expandAll.png to the folder \inetpub\amm\img

Installation is done, no IIS restart is required, just refresh the browser.

Technical concerns

This customization can cause Meridian Power web to stop responding for a long period if the user selects a folder with a long hierarchy of items.

This customization can cause server slowness if many users open a long hierarchy of subfolders at the same time.

Understand and improve the customization

This customization is based on manipulating the HTML page to add the new link and to simulate the user clicking all subfolders.

Before everything, we need to add to the file main.js some lines to load our customized javascript code, as in step 4 of the installation.

When the custom ExpandAll.js is loaded, the following code will wait for the HTML page to be loaded and then call the function applyInitialExpandAll(); to find folders and add the link to expand:

//Do the initial formatting
window.addEventListener("load", function() {
    applyInitialExpandAll();
    //event for every new TR in the html
    $('body').on('DOMNodeInserted', 'tr', DOMCallback);
});

The line $('body').on('DOMNodeInserted', 'tr', DOMCallback); will make sure that the function DOMCallback will be triggered for every time a new object <TR> is created. This will allow us to manipulate the system when a new folder is created

The function addExpandLink is the one adding the visual expand next to the folder name. you can modify the visual image by changing this line:

href.innerHTML = "<img src='.\\img\\expandAll.png' >";

You may also notice that, in the addExpandLink function, when the user click the link, the system will simulate as if the user is clicking in the folder itself and will also add an attribute to allow us to know that all subfolders must be expanded:

var createClickHandler =
            function(obj)
            {
                return function() {
                    if(event.isTrusted)
                    {
                        obj.childNodes[1].click();
                        obj.childNodes[4].setAttribute('expand', true);
                    }
                 };
            };

href.onclick = createClickHandler(obj);

Now, when a folder is expanded, new subfolders will be created and we will be watching for new items being created in the event DOMCallback

function DOMCallback(e)
{
    if (e.currentTarget.className == "folder" )
    {
            expandFolders(e.currentTarget);
    }
}

If the new HTML object is identified as a folder (or subfolder in this case) we will call the function expandFolders and this function will make sure to add for the new subfolder, the link to expand.

        if (level >1)
        {
            addExpandLink(child);
        }

This function will also expand the subfolder automatically if they have used the "Expand All" link instead of the regular expand link. The subfolder is expanded by simulating the user click and the validation is done based on the attribute ("expand") == 'true')

if (parentChild.childElementCount > 4 && parentChild.childNodes[4].getAttribute("expand") == 'true')
                {
                    child.childNodes[4].setAttribute('expand', true);
                    child.childNodes[1].click();
                }

You can use chrome F12 to debug, as described here: Chrome - Debug Javascript

F12 is also useful to investigate the Power WEB HTML code, so you can navigate thru it and understand how to manipulate the interface to ad customization, as in this video: Chrome - Inspect HTML

Supported scenarios

This customization is not supported by the default SLA agreement. But it has been tested under the following conditions:

Browser

Meridian Version

It may works in other versions, but has not been tested yet. Let us know if you have tried other versions.
